SPECIFICATIONS

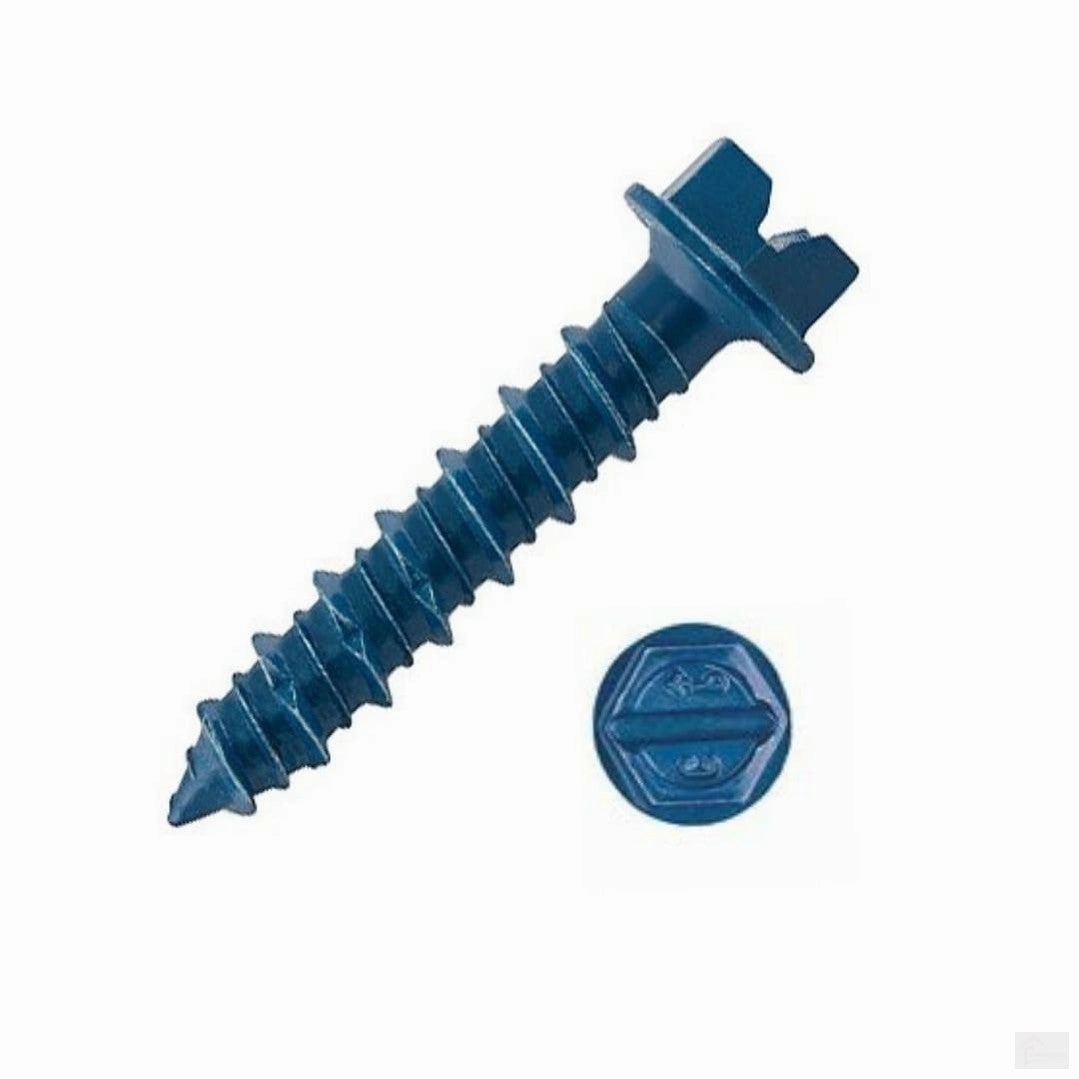

Product Type: Concrete Screw Anchor
Material: Carbon Steel
Diameter: 3/16"
Length: 3-1/4"
Drive Type: Hex
Head Type: Hex Washer
Finish: Blue Stalgard
Point Type: Gimlet

FEATURES

• Powered by Powers®
• Application: Window installations, Interior lighting fixtures and Screened Enclosures
• Uses: Storm shutters, Metal door frames and Joint flashing
• Anchor Materials: Carbon Steel with Perma-Seal Coating
• Suitable Base Materials: Normal-Weight Concrete, Lightweight Concrete, Grouted Concrete Masonry, Hollow Concrete Masonry, Solid Brick Masonry and Wood
• Gimlet point for self-drilling into the wood base material
• Removable (reusable in wood)
• High-low thread design for greater stability and grip
• Good corrosion protection with Stalgard coating
• Several colors options to match the application
• Available in slotted hex washer head, phillips flat head, phillips flat trim-fit and hex flange washer head styles
• General Applications & Uses: Window frames, Metal door frames, Interior handrails, Storm shutters, Interior lighting fixtures, Sill Plate
• ICC-ES Approvals: ESR-3068 (Uncracked Concrete), ESR-3196 (Masonry), ESR-3042 (Wood to Wood) & ESR-3213 (Chemically Treated Lumber)
• Other Approvals & Listings: Miami-Dade County Notice of Acceptance & Florida Building Code

Powered by Powers®, Dewalt UltraCon fastening system is a complete family of screw anchors for light to medium duty applications in concrete, masonry block, brick, and wood base materials. UltraCon concrete screw anchors are fast and easy to install, providing a neat, finished appearance. UltraCon concrete screw anchors are engineered with matched tolerance drill bits and installation tools designed to meet the needs of the user and also provide optimum performance. Featuring a gimlet point for self-drilling into wood base materials without pre-drilling. Available in carbon steel with a Stalgard coating in several colors. Head styles include a slotted hex washer head, Phillips flat head, Phillips flat trim-fit and Hex flange washer head.
