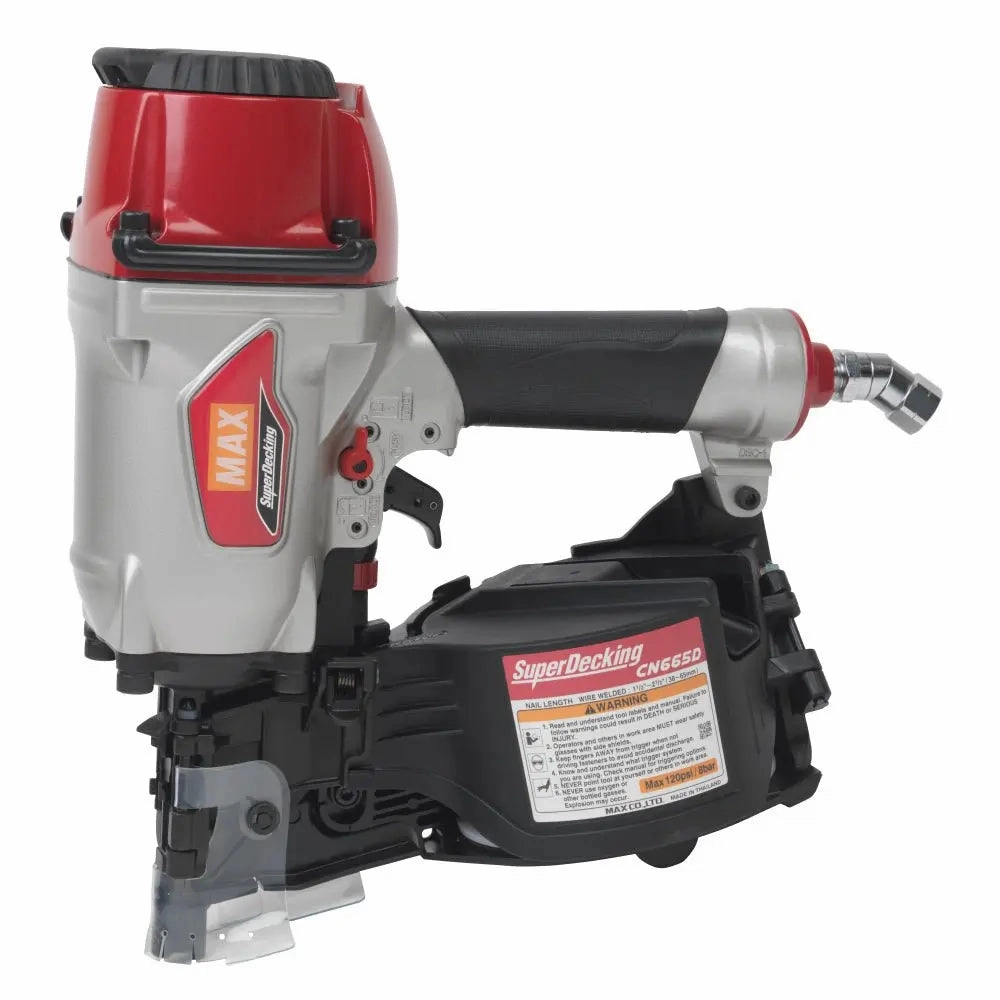

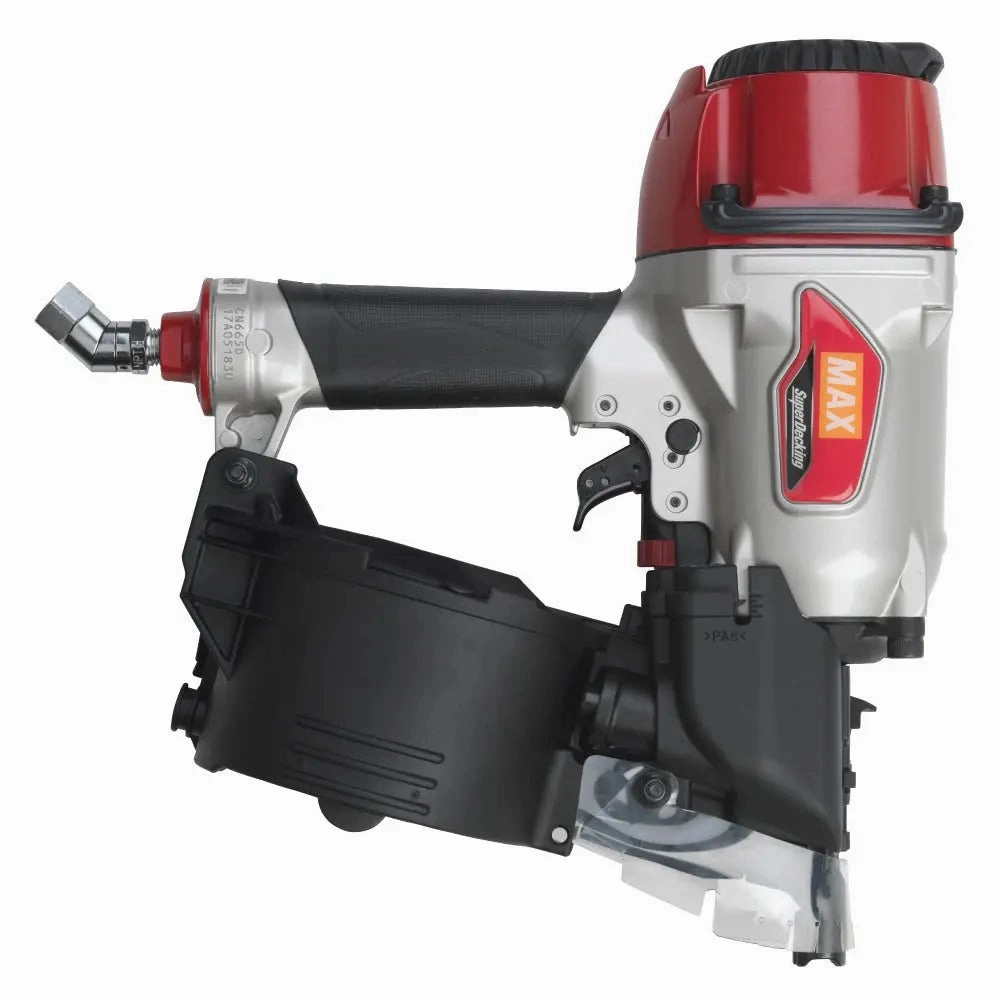

CN665D

Decking Coil Nailer up to 2-1/2"

With a large capacity magazine of 300 nails and a maximum fastener size of 2 ½” x .131”, the safety equipped CN665D SuperDecking® tool is ideal for sheathing, subflooring, roof decking, exterior deck, siding, fencing, exterior trim, furring, and strapping jobs. With an integrated rapid-fire trigger which enables high-speed fastening, carpenters can quickly finish their installations, reducing the probability of developing fatigue while you work.

  • Decking
  • Sheathing
  • Subflooring
  • Fencing
  • Furring
  • Strapping

FEATURES

  • QUICKLY DRIVE NAILS TO GET YOUR JOB DONE FASTERA rapid fire trigger allows for high-speed fastening. This trigger allows you to fire up to 15 nails per second.
  • SELF CLEANING TOOLThe patented, self-cleaning maintenance free end-cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.
  • CONSISTENTLY AND ACCURATELY SHOOTS NAILSThe depth adjustment dial allows operators to effortlessly drive nails into hard materials, and also control depth of drive when fastening soft materials, for a consistently polished finish.
  • DIVERT EXHAUST AIR AWAY FROM YOUR FACEAn easy twist air deflector cap rotates 360 degrees to divert exhaust air away from the user.
  • NO MORE TANGLED AIR HOSEA tangle free swivel fitting prevents the hose from tangling no matter the direction the tool is being held.

SPECIFICATIONS

WEIGHT
6.2 lbs
DIMENSIONS

12 5/8"(H) x 5 1/8"(W) x 11"(L)

MINIMUM OPERATION PRESSURE
70 PSI
MAXIMUM OPERATION PRESSURE
120 PSI
AIR INLET SIZE
1/4"
MAGAZINE CAPACITY
300
DEPTH CONTROL
Yes
JAM CLEARING
No

TRIGGER TYPE

Rapid Fire Trigger

AIR CONSUMPTION(FT3/CYCLE)
0.043
ACCESSORIES
Safety glasses

FASTENERS

COLLATION TYPE
Wire
NAIL GUN ANGLE

15

STRIP OR COIL
Coil
COMPATIBLE FASTENER TYPES
Wire welded Coil nails
MINIMUM FASTENER SIZE
1-1/2"
MAXIMUM FASTENER SIZE
2-1/2"

MINIMUM NAIL DIAMETER

.092"

MAXIMUM NAIL DIAMETER
.131"

MANUALS

Owner's Manual

DOCUMENTS
